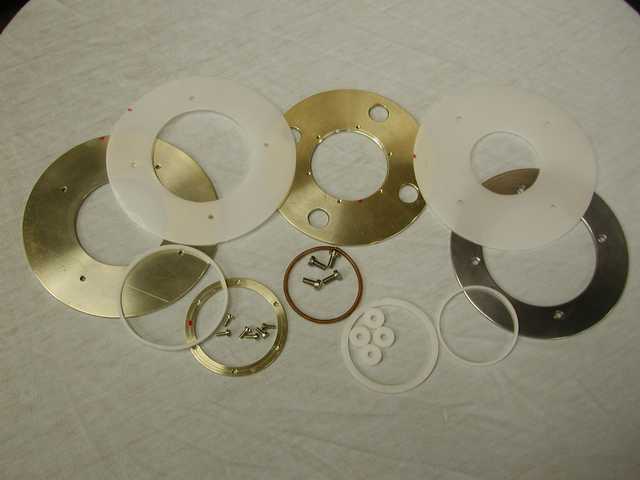

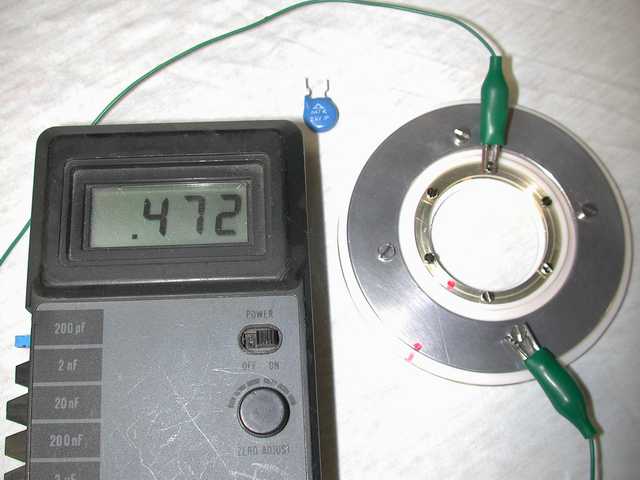

23 CM GS35b PA Parts

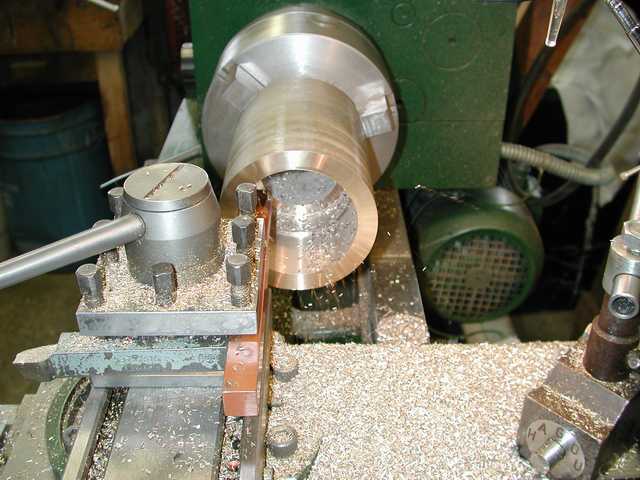

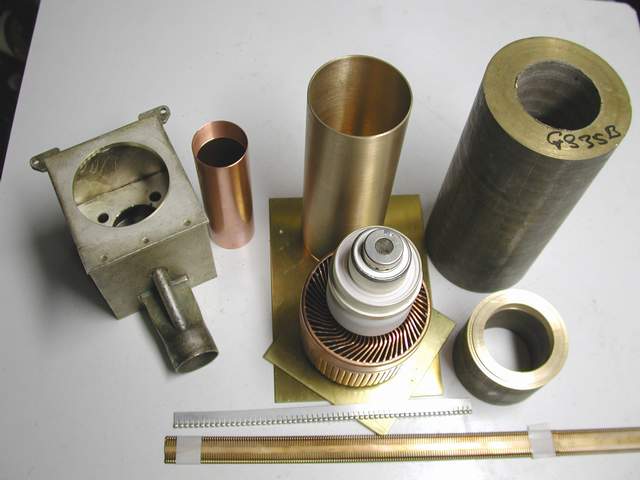

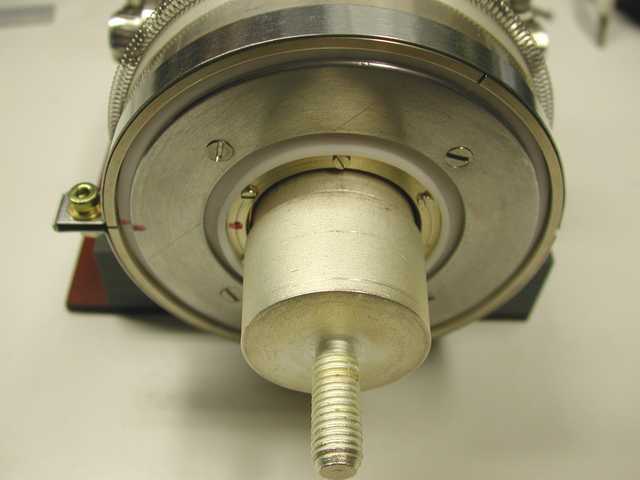

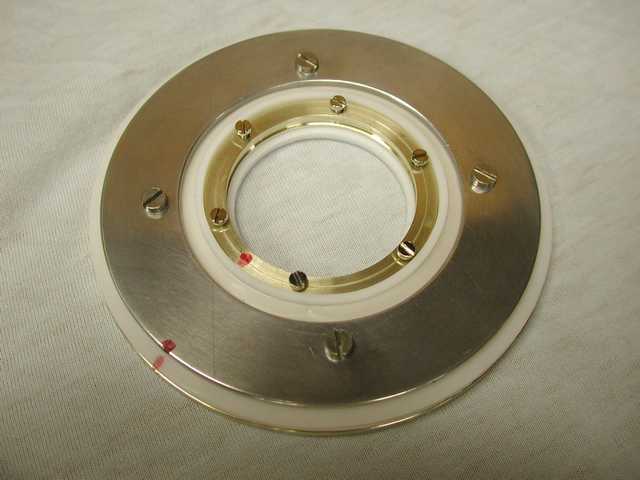

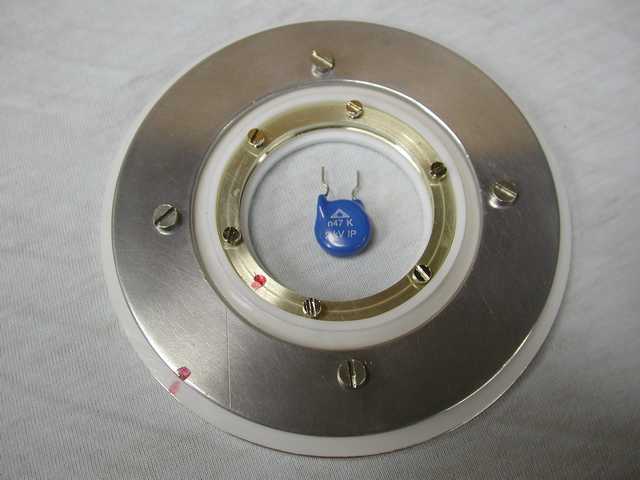

All parts were made in my own construction facilities at home, using mostly brass and copper.

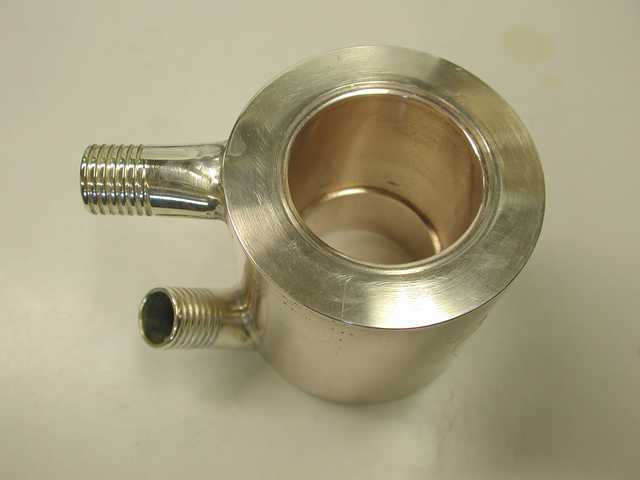

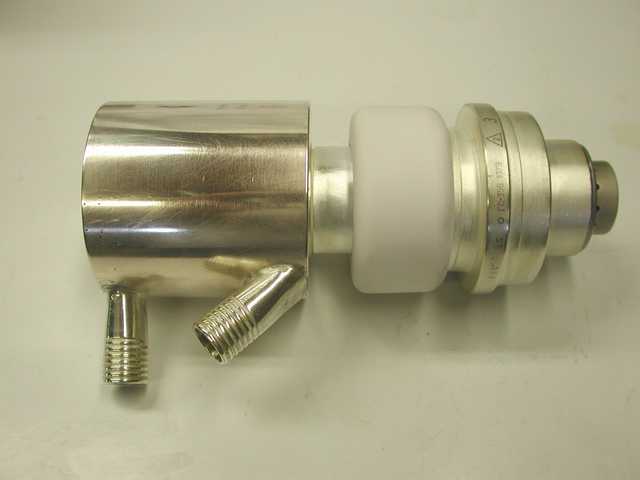

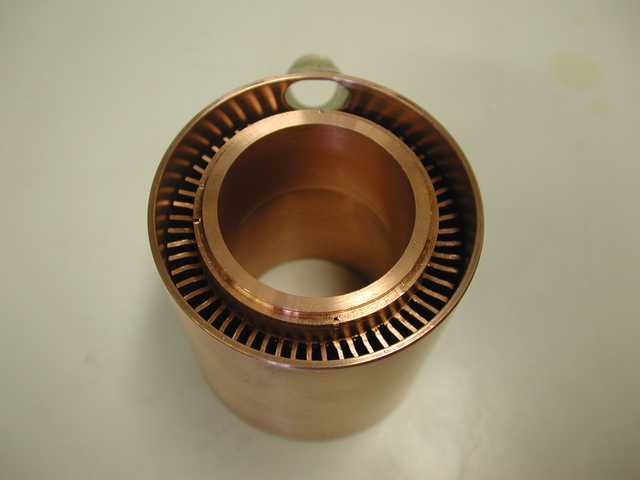

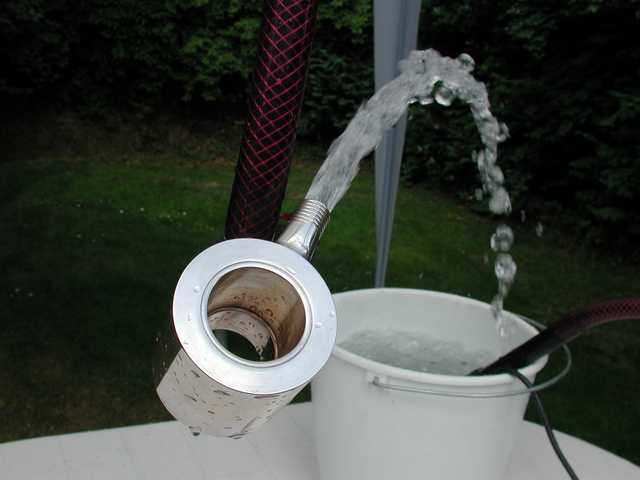

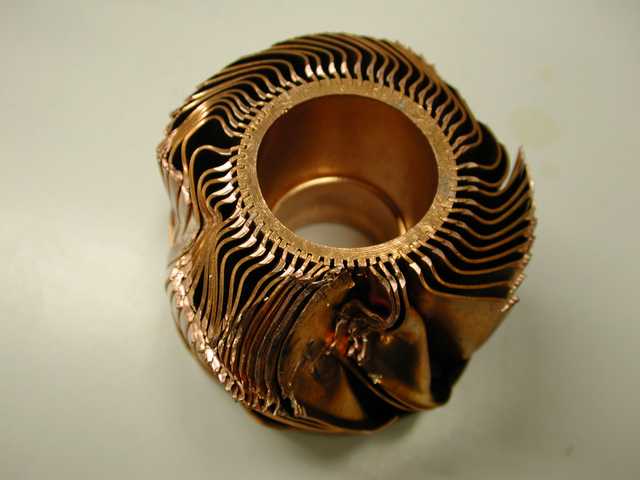

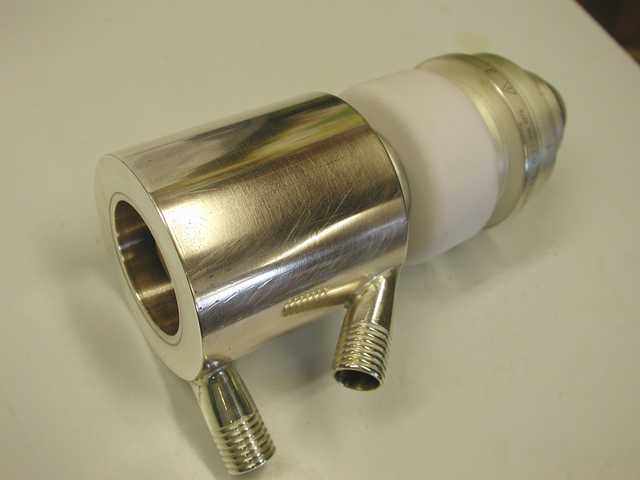

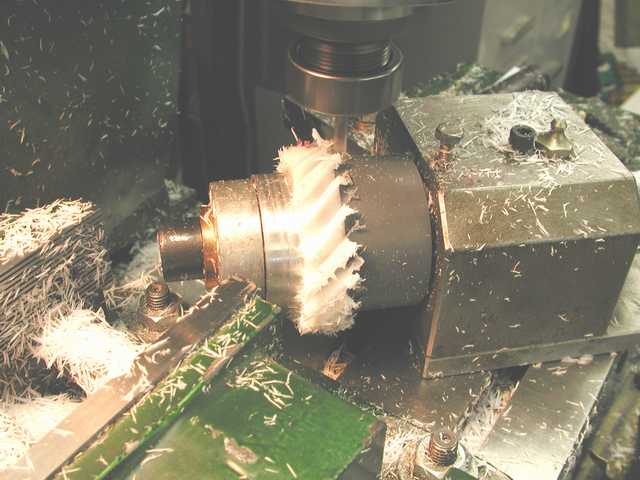

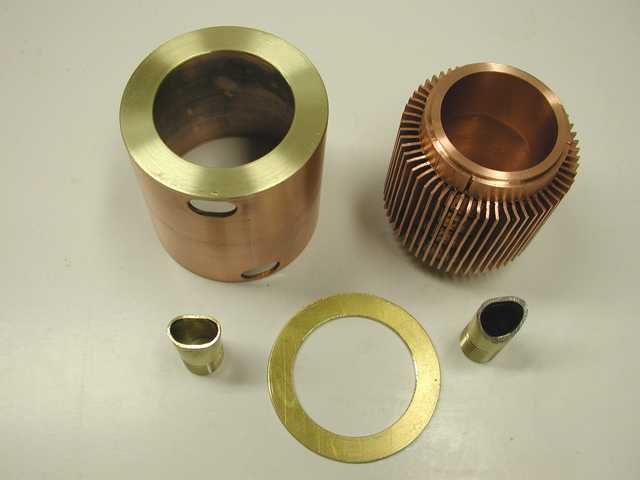

The anode water cooler is made  from a destroyed air cooler, which has decide to travel around in my workshop, after an attempt to minimize the dimensions on the lathe machine. It's happens if you are in a hurry and forgot to put the turning center to the part you working on.
