1000W GU-74B 2M PA

Click on callsign for VK6KDD (new callsign) e-mail

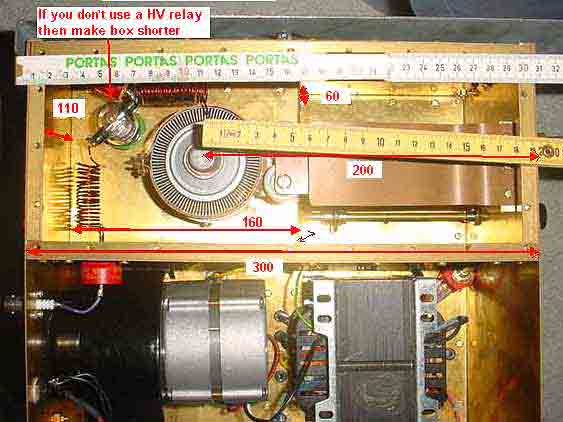

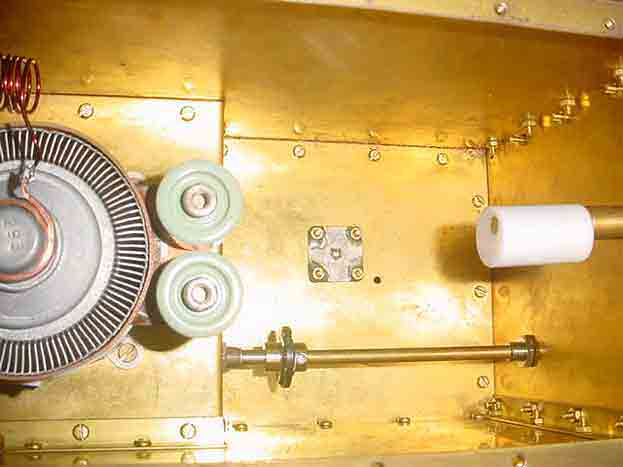

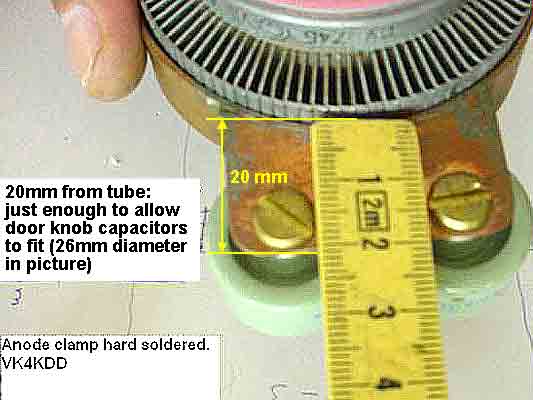

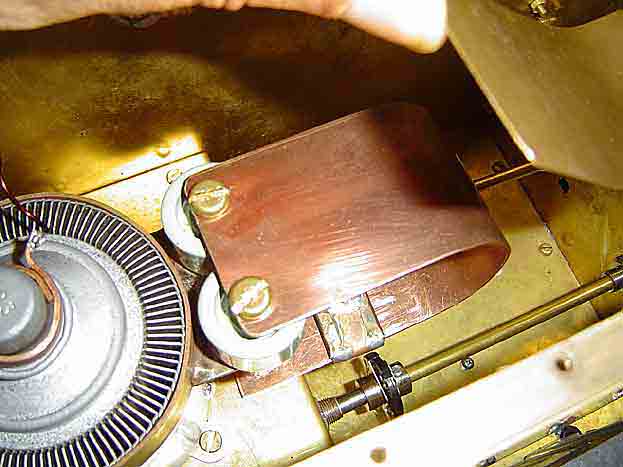

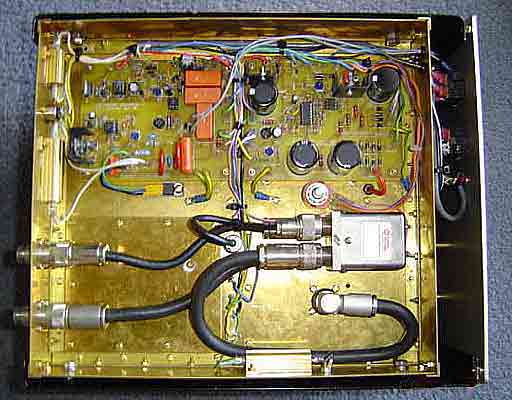

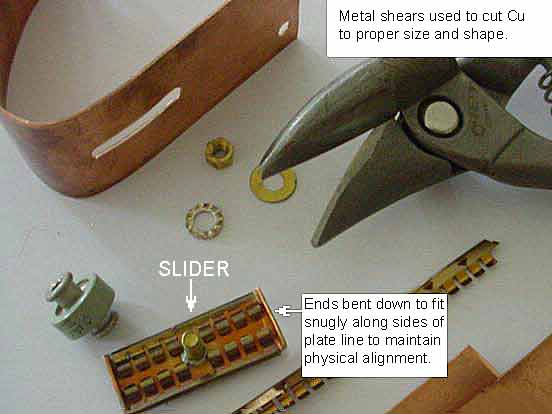

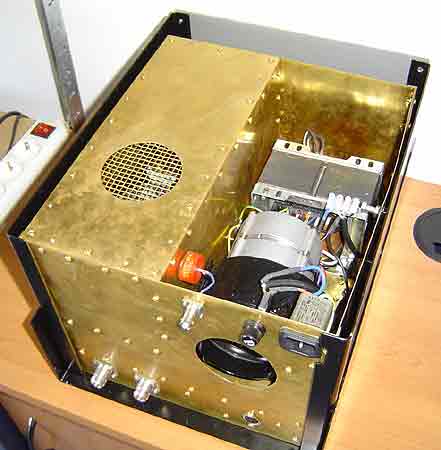

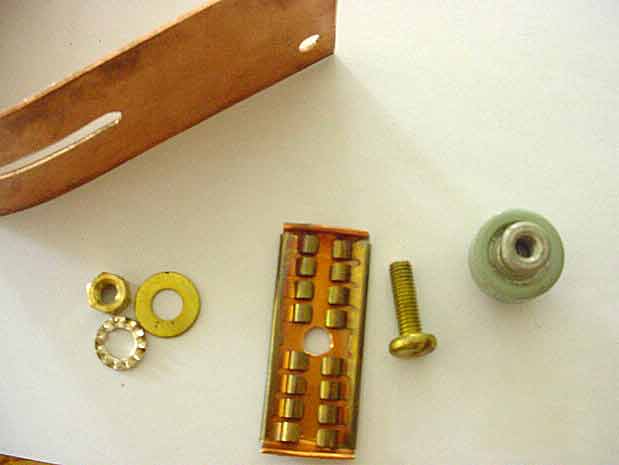

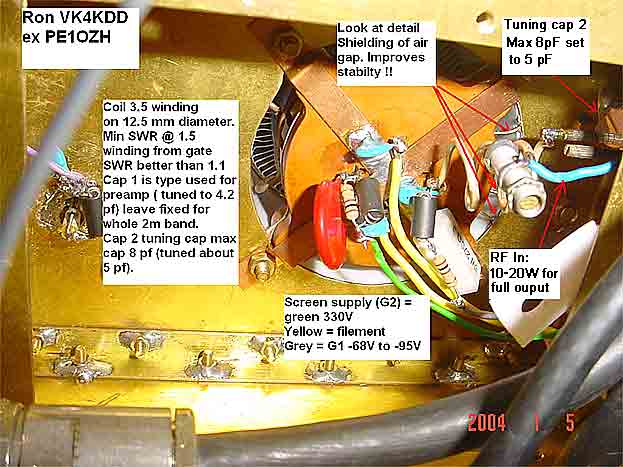

This amplifier design is based on the approach used by JH2CLV for a compact plate line. A U-shaped line, with capacitive tuning and sliding output "tap" provides a simple, reliable output circuit, easy to build and easy to tune and operate. A single GU-74B can provide excellent 1KW+ output performance in this configuration. This design has been successfully replicated by VK4TZL, proving its efficacy!

Click on picture for zoom


Further data, explanations, general information and a schematic will be added as they are received.
